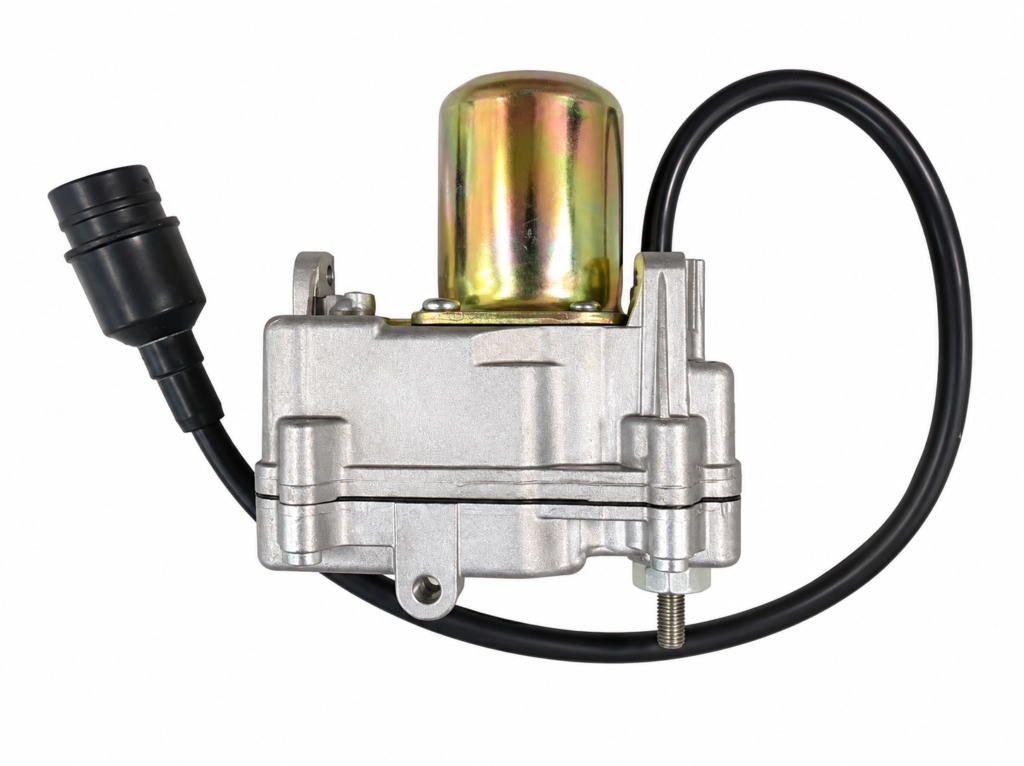

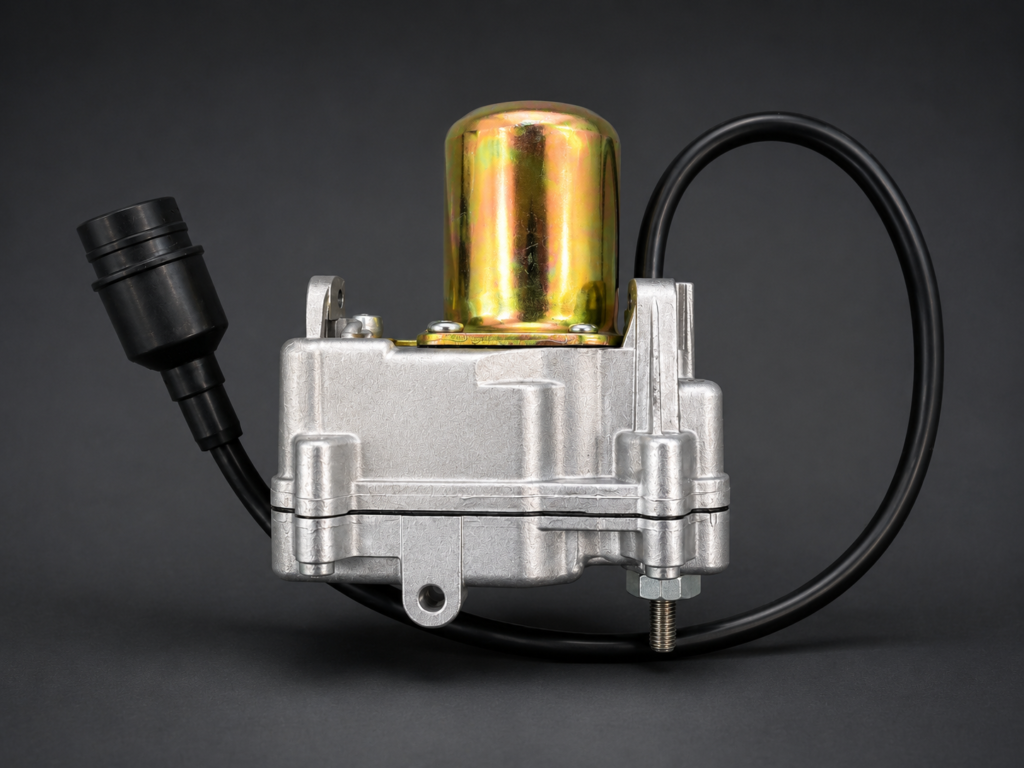

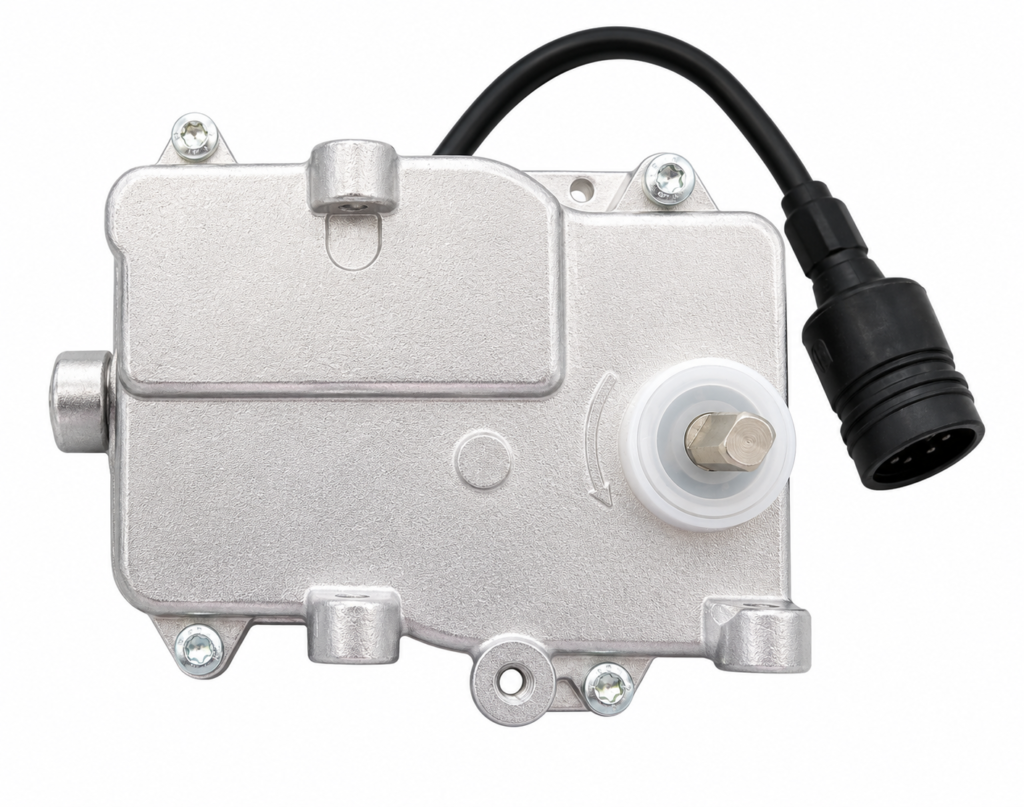

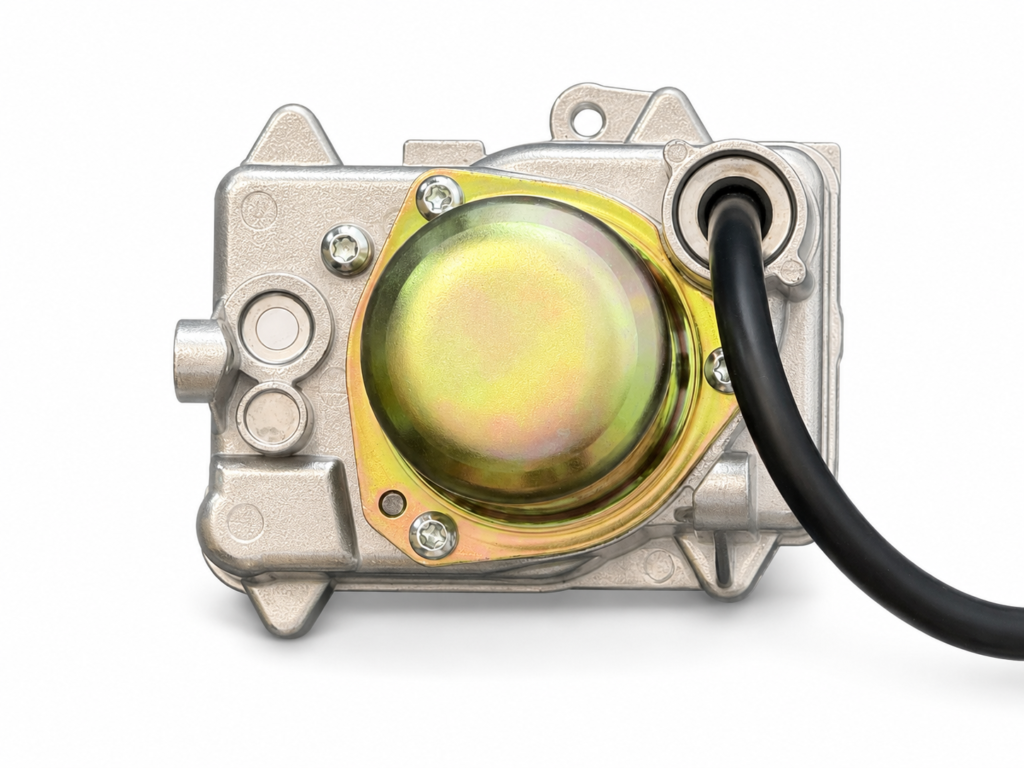

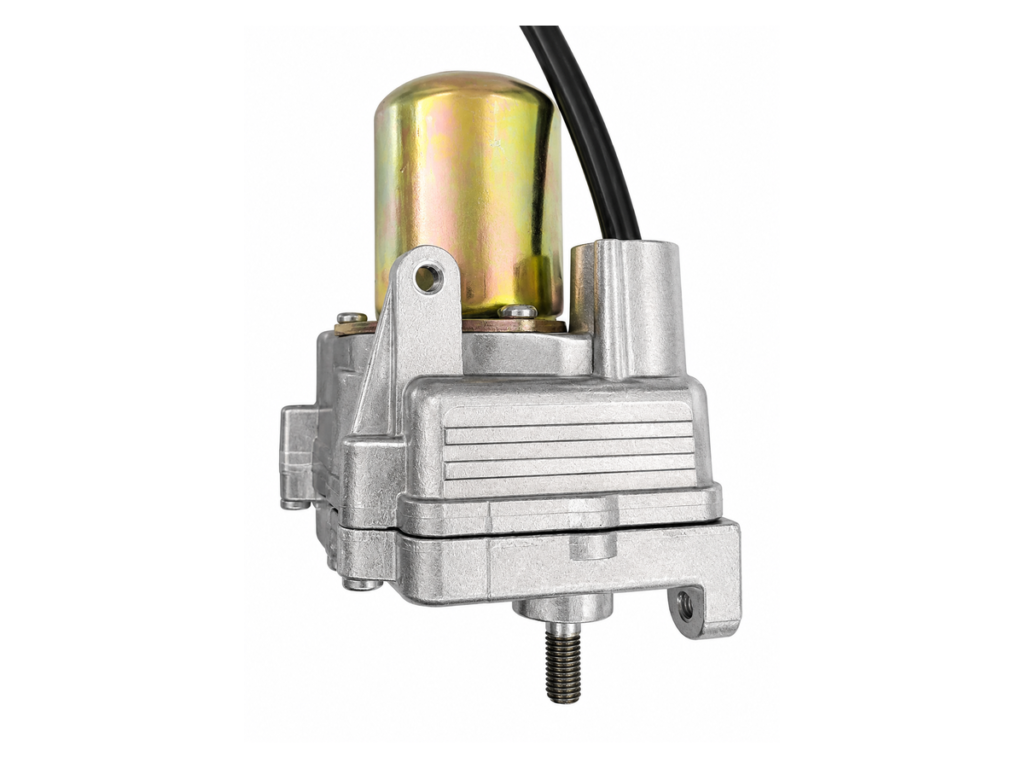

E-GAS, Actuator, E-gas actuator, electronic actuator, replacement VDO Siemens

Model: 12V version

Rated voltage: 12 V Operating temperature: −25°C to +90°C Switching torque (output torque): 400 N·cm (approx. 4.0 Nm) at 300 rpm Switching angle: 87.5° ± 3° Protection rating: IP56 Current draw (at 25°C): < 2 s Insulation resistance: > 500 kΩ Dielectric strength: 500 V

Rated voltage: 12 V
Operating temperature: −25°C to +90°C
Switching torque (output torque): 400 N·cm (approx. 4.0 Nm) at 300 rpm
Switching angle: 87.5° ± 3°
Protection rating: IP56
Current draw (at 25°C): < 2 s
Insulation resistance: > 500 kΩ
Dielectric strength: 500 V

Quantity

Made to drawing

We manufacture parts and replacements exactly to your technical documentation.

Quality control

Dimensional measurement and inspection report for every batch.

Warranty & support

Workmanship warranty and technical advice on selection.

VAT invoice 23%

Polish company, VAT invoice and clear B2B cooperation terms.

Product description

Rated voltage: 12 V
Operating temperature: −25°C to +90°C
Switching torque (output torque): 400 N·cm (approx. 4.0 Nm) at 300 rpm
Switching angle: 87.5° ± 3°
Protection rating: IP56
Current draw (at 25°C): < 2 s
Insulation resistance: > 500 kΩ
Dielectric strength: 500 V
