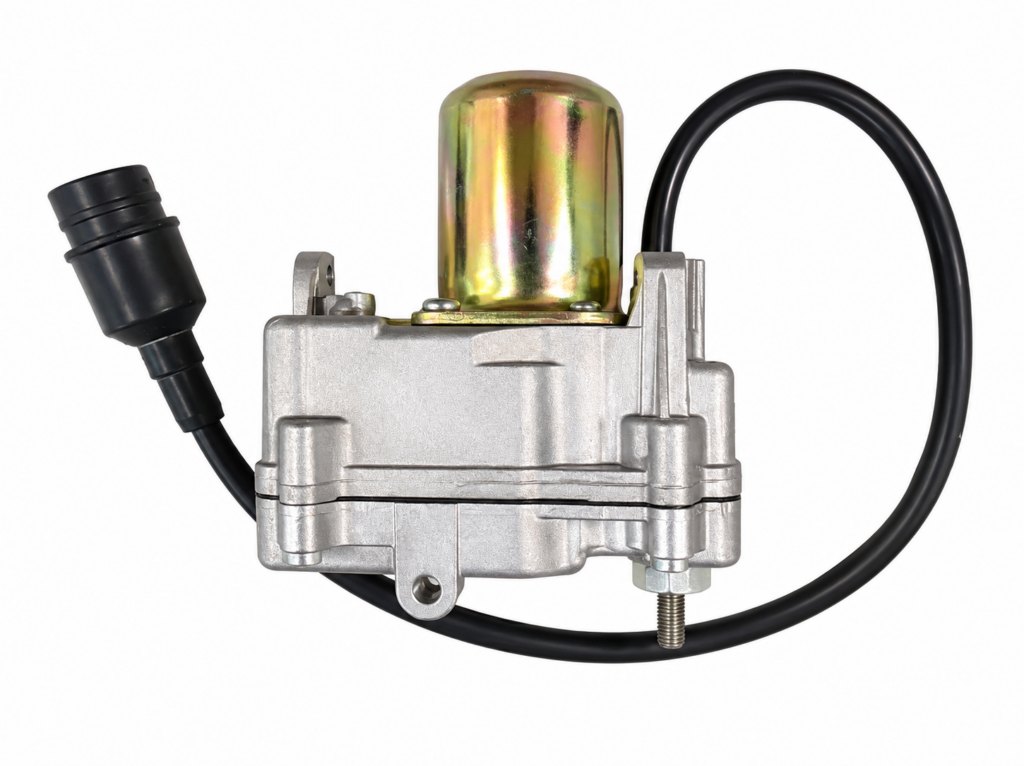

Servo motor, accelerator pedal, cruise control, transmission control unit, VDO replacement, Siemens 24V 408/221/5/1 408221005001

Model: 24V version

Rated voltage: 24 V Rated torque: 250 N·cm (2.5 Nm) Switchover time: <1 s Typical switching time: 750 ms Insulation resistance: >500 kΩ Dielectric strength: 500 V Operating temperature: −25°C to +90°C Protection rating: IP50 in accordance with DIN 40050, Part 9 Maximum output shaft torque: 10 Nm Maximum tightening torque for mounting screws: 12 […]

Napięcie znamionowe: 24 V
Moment znamionowy: 250 N·cm (2,5 Nm)
Czas przestawienia: < 1 s
Typowy czas przestawienia: 750 ms
Rezystancja izolacji: > 500 kΩ
Wytrzymałość dielektryczna: 500 V
Temperatura pracy: od −25°C do +90°C
Stopień ochrony: IP50 zgodnie z DIN 40050, część 9
Maksymalny moment dokręcania wału wyjściowego: 10 Nm
Maksymalny moment dokręcania śrub mocujących: 12 Nm (przy głębokości wkręcenia śruby 9 mm)
Mechaniczny kąt obrotu: 103° ± 5°
Złącze elektryczne: ITT Canon Sure Seal, 7-pinowe

Quantity

Made to drawing

We manufacture parts and replacements exactly to your technical documentation.

Quality control

Dimensional measurement and inspection report for every batch.

Warranty & support

Workmanship warranty and technical advice on selection.

VAT invoice 23%

Polish company, VAT invoice and clear B2B cooperation terms.

Product description

Rated voltage: 24 V
Rated torque: 250 N·cm (2.5 Nm)
Switchover time: <1 s
Typical switching time: 750 ms
Insulation resistance: >500 kΩ
Dielectric strength: 500 V
Operating temperature: −25°C to +90°C
Protection rating: IP50 in accordance with DIN 40050, Part 9
Maximum output shaft torque: 10 Nm
Maximum tightening torque for mounting screws: 12 Nm (with a screw insertion depth of 9 mm)
Mechanical rotation angle: 103° ± 5°
Electrical connector: ITT Canon Sure Seal, 7‑pin
